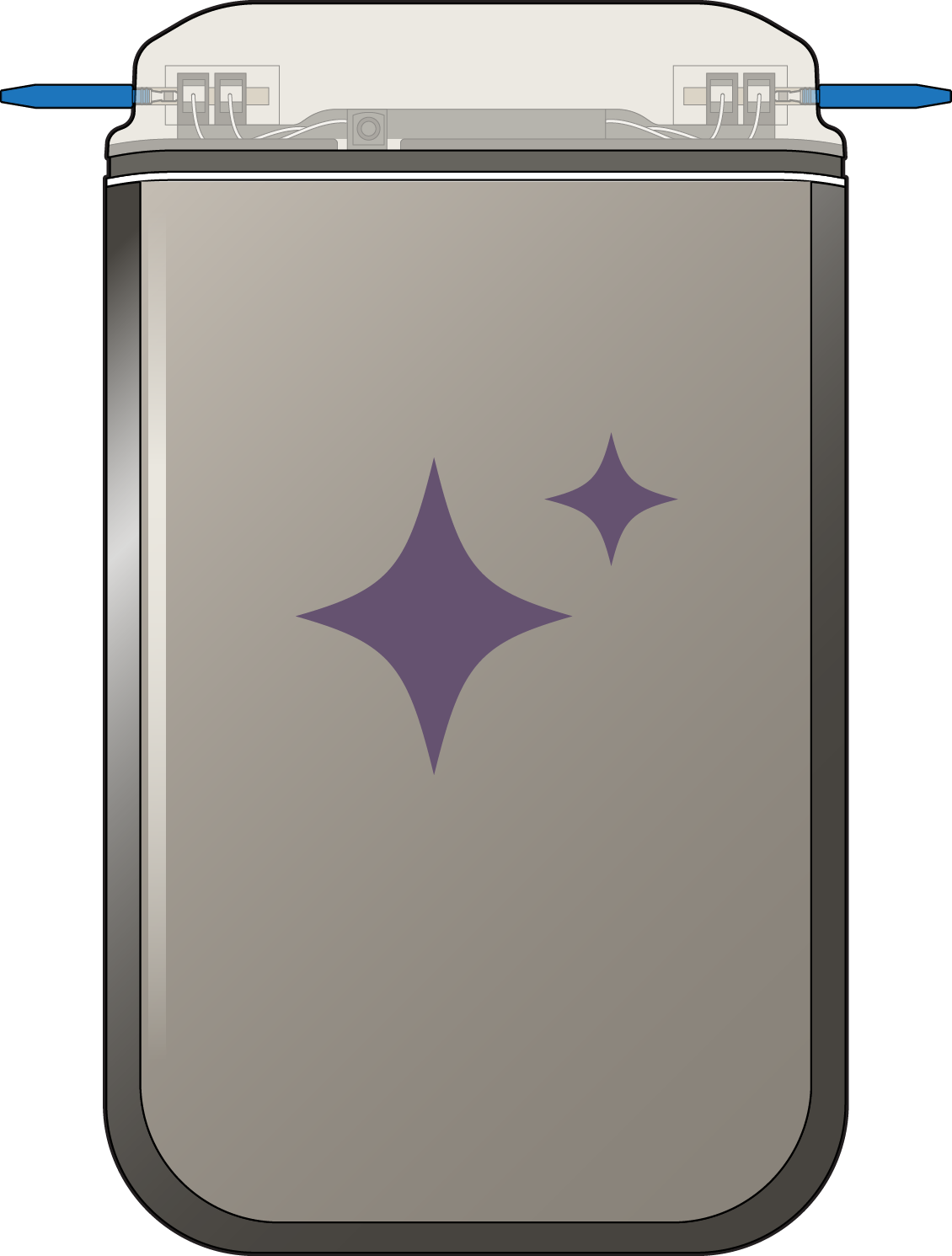

Power Module
- 600 mAh Li-ion recharge
- 32-bit ARM-7
- MedRadio
- 4 MB memory
- Accelerometer
- Thermistor

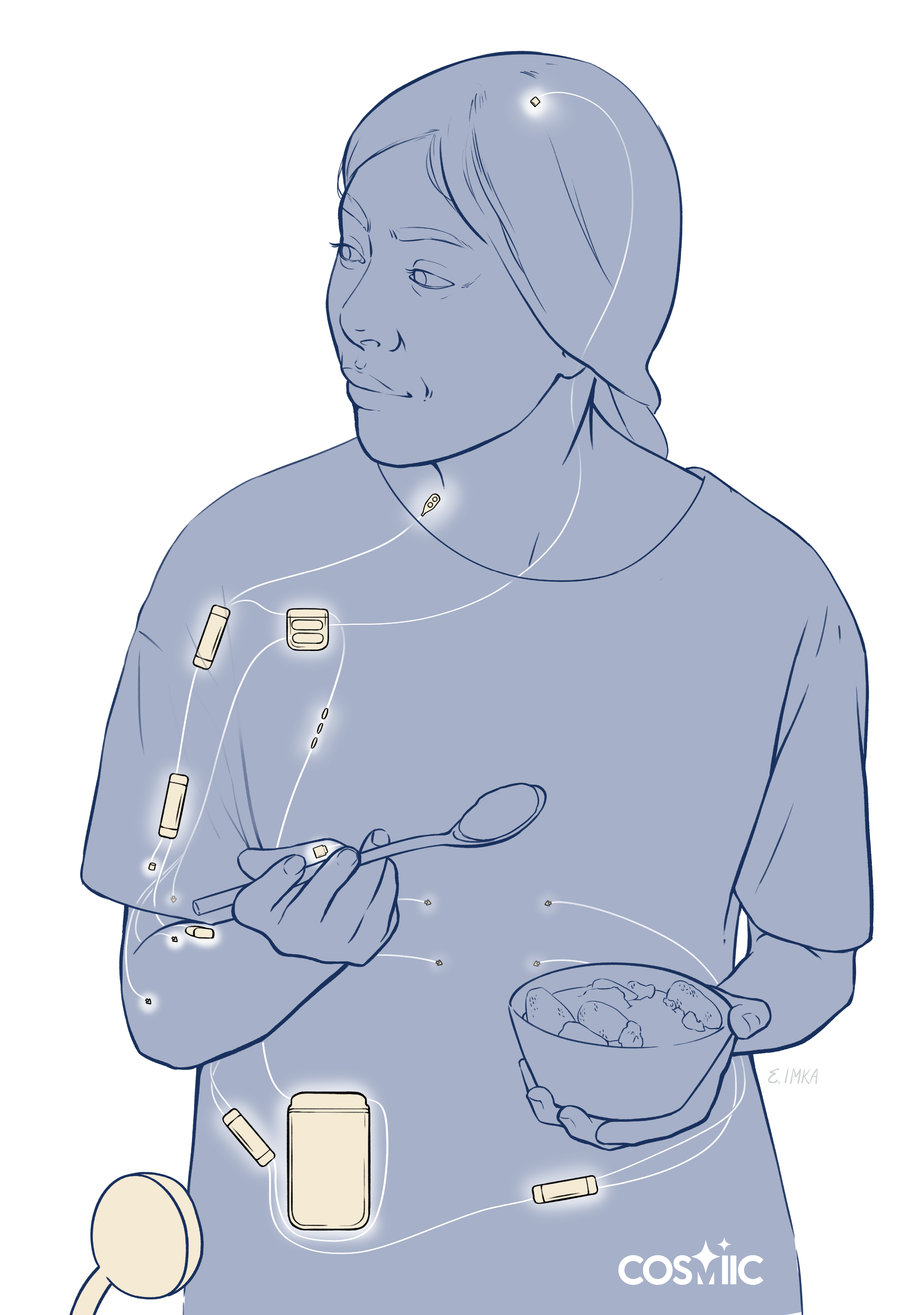

What is the COSMIIC System?
Now available as open source, the COSMIIC System is a no-strings-attached neuromodulation platform available for adoption by researchers and startups. The system can be configured with existing stimulating and sensing modules or with new modules to support unique research requirements. Uniquely, the design, documentation, and regulatory precedence enable a speedy path through benchtop, chronic animal, and first-in-human studies.
Learn MoreThe COSMIIC System
Scroll to follow the cable
Pulse Generator Module
- 4 independent channels
- 0–256 µs
- 0–20 mA
- 1–50 Hz
- Common anode
- Accelerometer
- Thermistor
- 8-bit AVR
Biopotential Recording Device
- 2 independent channels
- Myoelectric signals
- Gain 150–7500
- 8-bit ADC resolution
- 2 kHz sampling
- Software signal processing
- 8-bit AVR
In development

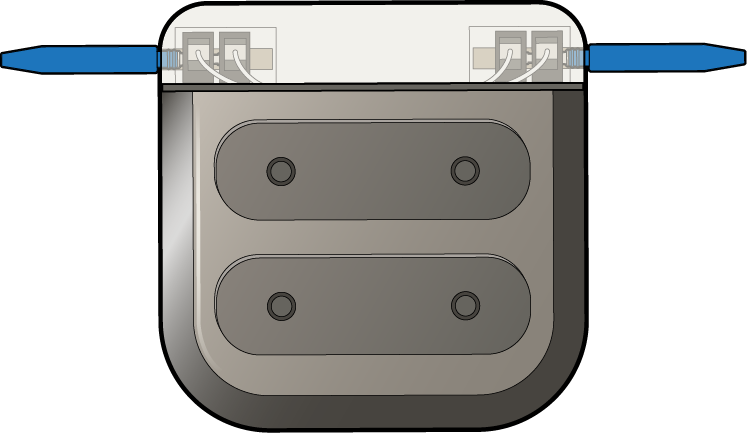

Nova Module
- 64 channel recording
- 32 channel stimulation

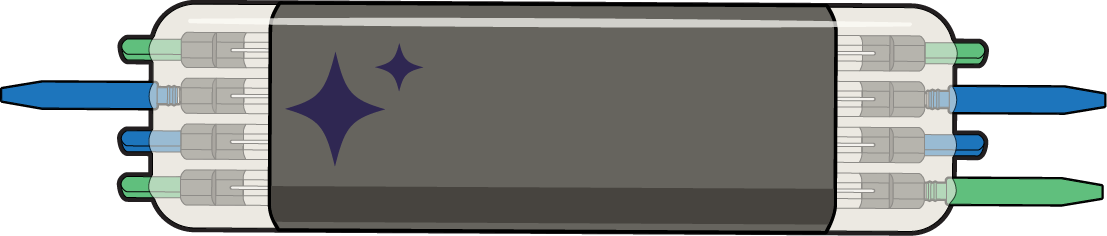

Fusion Module
- Remote powered inertial measurement unit

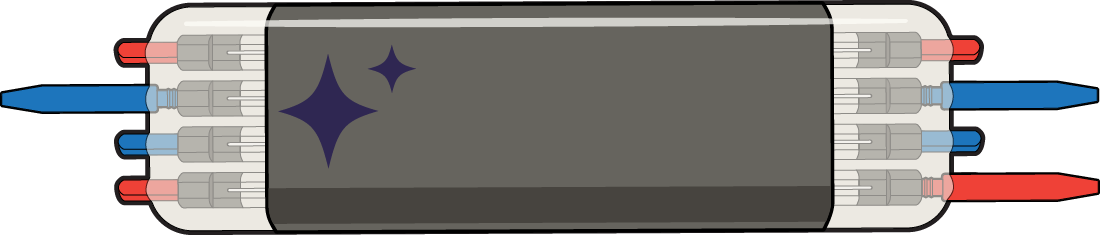

Gamma Module
- 20 kHz electrical nerve block
Lifeline
- Health monitor
- Sensorized cable
Ready to build with COSMIIC?
No matter what stage your idea is at, there is something for you. Start with a skim of the documentation or forum. Introduce yourself on the forum, or if you're in stealth mode, email us at open_source@cosmiic.org
